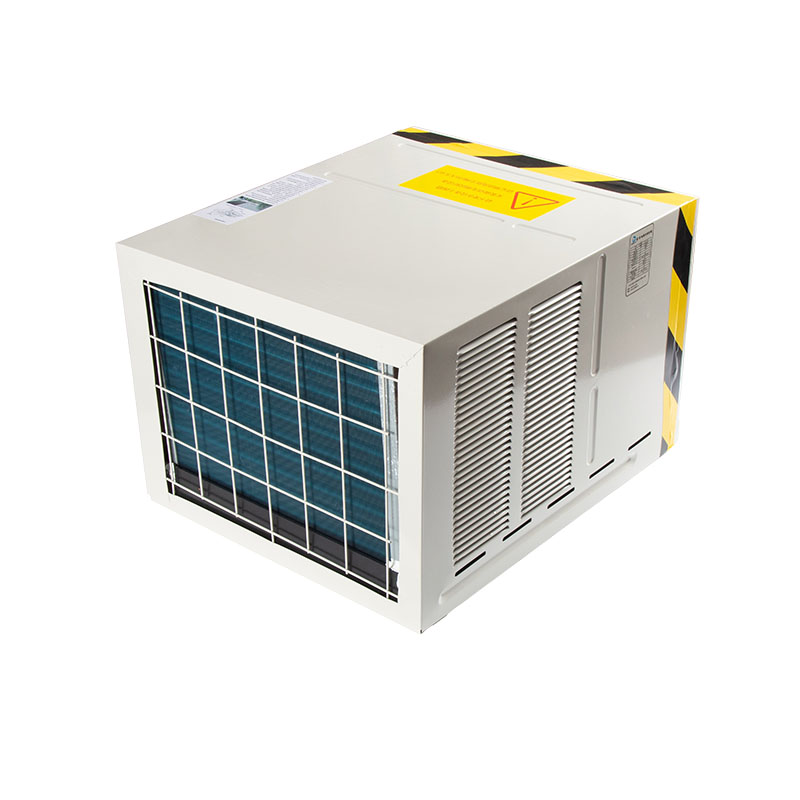

Elevator Air Conditioner
ST-S15 (1.5 HP environmentally friendly heating and cooling type)
reliable quality:
"Shengte" brand elevator air conditioner uses an internationally renowned brand host. The microcomputer control panel can automatically select cooling, heating, and air supply modes according to the indoor temperature. It adopts foreign advanced air conditioning water treatment technology and has a redundant design for water treatment. The air conditioner is guaranteed to be drip-free throughout its life. The shell is all sprayed with outdoor paint to ensure that the air conditioner is not prone to rust. The evaporator and condenser fins are made of military-grade materials with strong dust and corrosion resistance, thereby ensuring the quality of the Sainte elevator air conditioner.
Accessories professional:
The Owens cotton air supply duct is used to ensure that air conditioning, heating and air volume are never lost; equipped with anti-seismic and anti-corrosion parts, it has low noise, low power consumption and stable performance, meeting GB4706.1-2005, GB4706.32-2012 and GB4343. 1-2009, GB17625.1-2012, the machine room is equipped with special accompanying flat cables, which do not interfere with the power consumption of the elevator system and lighting system, and are equipped with leakage protection functions.
Energy saving and environmental protection:
The energy-saving air conditioner produced in accordance with the latest national standard CNCA-C07-01:2014 has an energy efficiency ratio of 2.69, low consumption and high energy, a combination of remote control control and fully automatic operation, automatic constant temperature, saving electricity, and a multi-layer defense purification device to effectively remove Turbid air; negative ions sterilize, purify the air in the car, reduce bacteria, prevent mildew, and deodorize. It can be controlled by remote control in the car and is very convenient to use. Sophisticated design:
Integrated air conditioner, small in size, light in weight, simple to install, easy to clean and maintain, will not affect elevator repair and maintenance, and is suitable for all types of elevators. The unique air outlet design can provide matching air outlets according to different car ceiling decorations, so as to achieve the best effect of beauty and ventilation. Strong selectivity:
In view of the different car load capacities and different car environments, our company has developed 1 HP single cooling type, 1.5 HP single cooling type, 1 HP cooling and heating type, and 1.5 HP cooling and heating type air conditioners. Customers can choose according to their own car Choose our elevator air conditioners of different specifications and models according to the cabin conditions.
After-sales service:
A headquarters and 46 after-sales service centers are strategically located in major cities across the country. Professional technical personnel provide you with the most satisfactory services 24 hours a day, so that you have no worries.
Product
model and technical parameters:
model | ST-S15 (1.5 HP environmentally friendly heating and cooling type) |
Function | Fully automatic operation |
Accessibility | Get fresh air |
Refrigeration capacity(W) | 3300 |
Heating capacity(W) | 3300 |
Circulating air volume (m³/h) | 610 |
Operating voltage (V) | customizable |
Rated power (W) | 1350 |
Noise dB(A) | Car ≤33 |
| Shaft ≤ 42 |
Type of protection against electric shock | Class I |
waterproof level | IPx4 |
Dimensions (length × width × height) mm | 570×450×370 |
Weight(KG) | 30 |
Main configurations:
Part name | Brand |
Compressor | Meizhi |
Evaporator | Huacheng (shell and tube water cooling, fin air cooling) |
Condenser | Huacheng (shell and tube water cooling, fin air cooling) |
Water treatment equipment | Imported from Germany "RITZ" brand |
Microcomputer control board | Shengte |
Flat Cable | Pearl River |
Note: All the air conditioner sheet metal is sprayed with outdoor paint to ensure that the air conditioner will not rust throughout its life. |
